Bag Making Machine

Semi Automatic Non Woven Bag Making Machine

Salient Features

R

Automatic roll feeding system

R

Feed off can be automatically shut down

R

High quality ultrasonic system

R

Ease to operate with touch screen interface

R

Robust and durable construction

R

Heavy duty

R

Branded pneumatic and electrical parts

R

Automatic edge folding system

R

Easy size changing options

R

Multiple bag type changing systems

R

Batch collection

R

Automatic handle punching system

R

Automatic handle loop pasting system

R

Automatic box creasing and v notch punching system

R

Sensor based technology for accuracy and speed.

R

Photo sensor for pre printed roll bag formation

Technical specifications

Model EBH700 EHBH700 EBH800 EHBH800
Fabric roll width (max) 1250mm 1250mm 1550mm 1550mm
Bag width Flat bags- 100-1200

Vest bags 150-580

Flat bags- 100-1200

Vest bags 150-580

Flat bags- 100-1200

Vest bags 150-680

Flat bags- 100-1200

Vest bags 150-680

Bag height Flat bags- 150-580

Vest bags 100-1200

Flat bags- 150-580

Vest bags 100-1200

Flat bags- 150-680

Vest bags 100-1200

Flat bags- 150-680

Vest bags 100-1200

Cutting blade width 700mm 700mm 800mm 800mm
Production speed 40-90pcs/min 40-120pcs/min 40-90pcs/min 40-120pcs/min
Non woven fabric thickness 20-90 gsm 20-90 gsm 20-90 gsm 20-90 gsm
Gusset 25-85 mm 25-85 mm 25-125 mm 25-125 mm
Power supply 220v/1 phase/50hz 220v/1 phase/50hz 220v/1 phase/50hz 220v/1 phase/50hz
Power 18kw 18kw 20kw 20kw
Side LxWxH) 11000x2000x2000 11000x2000x2000 11000x2200x2300 11000x2200x2300
Box type features(with creasing) Yes Yes Yes Yes
Box type features(with corner cut) Yes Yes Yes Yes
Online double handle loop Yes Yes Yes Yes
Double w cut bag line N/A N/A N/A N/A
Online w cut punching N/A N/A N/A N/A
Man power 1 Skilled &

1 unskilled

1 Skilled &

1 unskilled

1 Skilled &

1 unskilled

1 Skilled &

1 unskilled

High Speed Servo motor N/A Yes N/A Yes

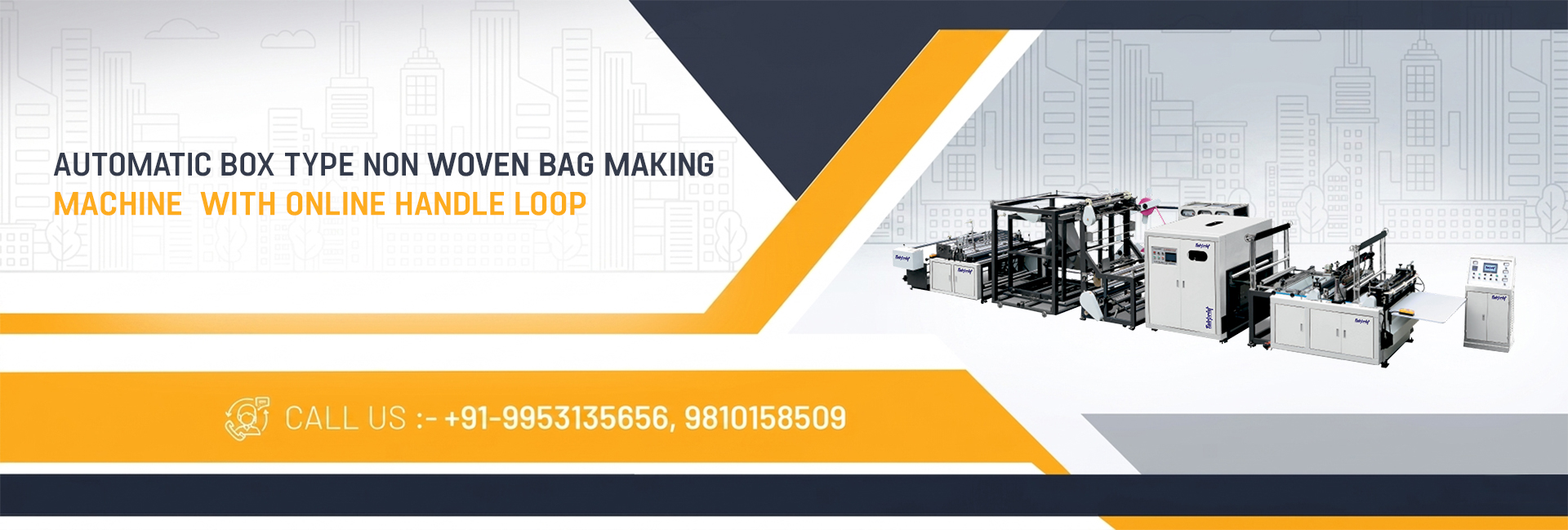

Automatic Box Type Non Woven Bag Making Machine With Online Handle Loop

 This high speed non woven box bag making machine is suitable for those who are willing to have profitable business with less men power and variety of non woven products with high quality and timely deliveries. That is why Fairprint is awarded as the best non woven bag making machine manufacturer in India.

In Fairprint’s automatic non woven bag making machine, non woven roll is installed automatically by pneumatic lifters then further roll move towards mouth folding and ultrasonic portion where top of bag is folded and ultrasonically sealed, further non woven fabric moves towards center folding unit where the non woven roll is folded from center with accurate adjustments available in machine. Then further in this automatic non woven bag making machine, the roll moves to the box unit where creasing and cutting of the v notch on the fabric is done after being ultrasonically welded in v notch bottom. Then the box type v notch roll moves towards the automatic handle loop unit where non woven handle is applied on both sides of the bag. Further this non woven handle pasted roll moves towards the ultrasonic side sealing and cutting unit and then the final box bag is formed. In this box bag making machine one can easily set the desired width, length and shape of box easily with the touch control panel of the machine.

With so much hi-tech features, automations, pneumatics, ultrasonic and branded electrical components and superior quality material used to built makes this non woven bag making machine durable and of multipurpose use. Hence withstands the no.1 non woven bag making machine in India tag with it. Fairprint’s automatic non woven bag making machine with online handle loop is more reliable, durable and profitable with the strong service backup support of the company and the premium quality of the machinery.

Applications

This fully automatic box type non woven bag making machine with online handle loop is very versatile and can make various types of non woven bags automatically as:-

R

D cut non woven bag

R

Bottom gusset non woven bag

R

Shoe non woven bag/ Dori Non Woven Bag

R

Non woven pouches

R

Election caps

R

Non woven pillow covers

R

Flags and stoles

R

Non woven sheets

R

U cut bags

R

W cut bags

R

Non woven handle loop bag

R

Handle loop bag with bottom gusset

R

Side gusset bag

R

Creasing box bag

R

Non woven box bag

Process flow chart

Following flow chart will help to understand working process of fully automatic non woven box type bag making machine with online handle loop

1

Automatically roll feeding with pneumatic lifters

Folding and ultrasonic sealing of top mouth fold of bag

2

3

Non woven roll is folded from center in folder unit

Bottom gusset is formed by wheels

4

5

Automatic creasing is done for side gusseting

V notch is ultrasonically sealed

6

7

V notch is pneumatically cutted

Automatic handle loop is pasted on both sides

8

9

Ultrasonic sealing is done by horns

Bag is cutted in desired width controlled through touch panel

10

11

Box bag with handle loop is ready
