Semi Automatic Non Woven Bag Making Machine
Salient Features
Pneumatic roll lifting system
Auto stop after roll finish
Touch control panel
High quality ultrasonic welding system
Ease to operate
Multiple bag making option
Automatic batch collection
Automatic u cut punching
Branded electrical components
High quality pneumatic technology
Robust built
Safety equipments
Photo chromatic sensor for printed rolls
Technical specifications
| Model | EA700 | EAH700 | EA800 | EAH800 | EDA800 | EDAH800 |
|---|---|---|---|---|---|---|
| Fabric roll width (max) | 1250mm | 1250mm | 1550mm | 1550mm | 1550mm | 1550mm |
| Bag width | Flat bags- 100-1200
Vest bags 150-580 |
Flat bags- 100-1200
Vest bags 150-580 |
Flat bags- 100-1200
Vest bags 150-680 |
Flat bags- 100-1200
Vest bags 150-680 |
Flat bags- 100-1200
Vest bags 150-680 |
Flat bags- 100-1200
Vest bags 150-680 |
| Bag height | Flat bags- 150-580
Vest bags 100-1200 |
Flat bags- 150-580
Vest bags 100-1200 |
Flat bags- 150-680
Vest bags 100-1200 |
Flat bags- 150-680
Vest bags 100-1200 |
Flat bags- 150-680
Vest bags 100-1200 |
Flat bags- 150-680
Vest bags 100-1200 |
| Cutting blade width | 700mm | 700mm | 800mm | 800mm | 800mm | 800mm |
| Production speed | 40-90pcs/min | 40-120pcs/min | 40-90pcs/min | 40-120pcs/min | 40-90pcs/min | 40-120pcs/min |
| Non woven fabric thickness | 20-90 gsm | 20-90 gsm | 20-90 gsm | 20-90 gsm | 20-90 gsm | 20-90 gsm |
| Gusset | 25-85 mm | 25-85 mm | 25-125 mm | 25-125 mm | 25-125 mm | 25-125 mm |
| Power supply | 220v/1 phase/50hz | 220v/1 phase/50hz | 220v/1 phase/50hz | 220v/1 phase/50hz | 220v/1 phase/50hz | 220v/1 phase/50hz |
| Power | 12kw | 12kw | 14kw | 14kw | 15kw | 15kw |
| Side LxWxH) | 10500x2000x2000 | 10500x2000x2000 | 10500x2200x2300 | 10500x2200x2300 | 10500x2200x2300 | 10500x2200x2300 |
| Double w cut bag line | N/A | Yes | N/A | Yes | N/A | Yes |
| U cut/ w cut punching | Yes
|
Yes | Yes | Yes | Yes | Yes |
| Man power | 1 Skilled
1 unskilled |
1 Skilled
1 unskilled |
1 Skilled
1 unskilled |
1 Skilled
1 unskilled |
1 Skilled
1 unskilled |
1 Skilled
1 unskilled |
| High Speed Servo Motor | NA | Yes | N/A | Yes | N/A | Yes |

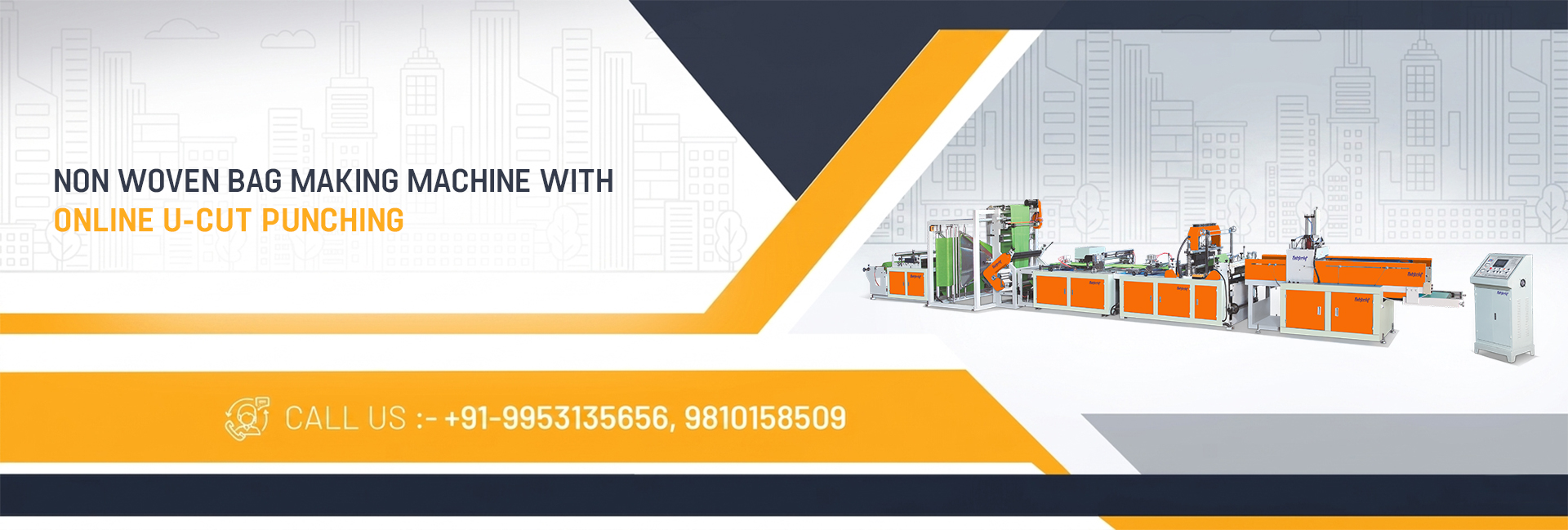

Non Woven Bag Making Machine with Online U-cut Punching
As poly bags are getting banned and the need of carrying grocery and shopping goods continuous, demand of non woven bags which appears to be like cloth bags easy to carry and reuse is increasing day by day. Any shopkeeper, fruit seller, grocery stores, clothing stores, sweet shops, home delivery food etc requires non woven bag to give with every product which makes non woven bag project as an in demand project to invest in, non woven bags are used in various lines this business rarely go under recession and always gives profitability as the demand is always high and in various lines.
Fairprint’s non woven bag making machine with online u cut punching is of huge demand as it can make u cut/ w cut bags fully automatically with u cut/ w cut punching online at the same time, whereas in other non woven bag making machine, u cut punching is done separately.
This non woven bag making machine also comes with special double line operation in which one can make 2 u cut/ w cut/ vest bags at the same time, thus doubling the production in same time reduces production cost and increases the profit margins making this machine as best seller in the market. People who want to do big jobs in packing industry on same setting of machine are more attracted towards this non woven bag making machine with online w cut punching.
In this non woven bag making machine model, this online w cut punching attachment can also be installed after buying the basic model from Fairprint. In online u cut punching machine, bags are made from non woven rolls to the ready u cut / w cut bag or vest bag. Online u cut non woven bag making machine is fully equipped with auto functions, pneumatics, branded electrical, ultrasonic and modern technologies to get desired outcome from the machinery. In this non woven bag making machine, roll is installed and further travels to folding unit where it is folded and side sealing is done through ultrasonic to form the tube. After that side gusset for vest bags is formed by a boat shaped unit and wheels. Further non woven roll travels to the dancing pad unit and then to the ultrasonic sealing path where sealing is done by sealer and horns. Further according to the size inserted in the touch control panel, the bag is cutted in desired dimension automatically then the cutted bags are batch wise collected by online w cut punching unit grippers and then these grippers hold the bags and takes them under u cut punching system where the u cut or w cut is done and waste is moven to a bin and the ready bags are moved to a conveyor belt for packing. With all these high tech features equipped in the machine to turn the functioning smooth and easy to the production unit this product is a hot seller in the market.
Applications
Fairprint’s non woven bag making machine with online vest bag attachment is a multifunctional machine as it can make various types of non woven bags and non woven items as:-
Non woven d cut bags
D cut bags with bottom gusset
Dori shoe bags/ string bags
Scratch less non woven pouches
Disposable pillow covers
Sheets/ palley
Flags of non woven
Election caps
U cut bags
Non woven vest bags/ w cut bags
Non woven bags with handle
Bottom gusset non woven bags with handle
Non woven side gusset bags
Process flow chart
To understand the working of non Woven Bag making Machine with online U-Cut Punching following flow chart will make things much clear
1
Automatic feeding of roll through pneumatic lifters
Roll passes through folder and folded from center
2
3
Side sealing of roll is done to form a tube *note- in double line 2 tube is formed at this place by 2 ultrasonic sets
Side gusseting of roll is done by boat structure and wheels
4
5
Further roll moves in ultrasonic sealing unit, by horns where sealing of bag is done
Bags are cutted in desired dimension through control panel
6
7
Grippers of online u cut punching unit grabs the bunch of cutted bags
Bunch of bags moved by grippers to u cut punching station
8
9
U cut/ w cut is cutted on the bunch of bags
U cut bags are ready for packaging and dispatch
10
